Product News May 7, 2019

NICHICON PCZ Series of 150℃ Chip-Type
Conductive Polymer Aluminum Solid Electrolytic Capacitors

NICHICON CORPORATION

Karasumadori Oike-agaru, Nakagyo-ku, Kyoto
Phone: +81-75-231-8461
Inquiries: Masanobu Seki, Operating Officer and
General Manager, Capacitor Business Headquarters

 NICHICON CORPORATION developed the PCZ series of chip-type conductive polymer aluminum solid electrolytic capacitors, which has an operating temperature of 150℃ with a life expectancy of 2,000 hours. The PCZ series enhances the heat resistance technology used in the PCH series that featured the highest guaranteed temperature of 135℃ before the introduction of the PCZ series. The PCZ series of conductive polymer aluminum solid electrolytic capacitors featuring low equivalent series resistance (ESR) in the temperature range of 150℃.
 The new series will be exhibited at Power System Japan 2019, held at Makuhari Messe from Wednesday, April 17, to Friday, April 19.

Overview and Development Background

 The automotive and related fields have been accelerating the usage of electronic components, driven by the shift to electric vehicles and the spread of advanced driver assistance systems (ADAS). Demand for highly reliable capacitors that operate at high temperatures has increased with the installation of control boards, such as electronic control units (ECUs), in the engine compartment.
 Conductive polymer aluminum solid electrolytic capacitors feature lower ESR and higher allowable ripple current compared with aluminum electrolytic capacitors, but they were limited in their usable temperature range.
 The PCZ series guarantees operation of 2,000 hours at 150℃ by further enhancing the high heat resistance technology used in the PCH series that guarantees operation at 135℃.

Features

The development of the PCZ series has includes the optimization of the components of the current PCH series, including conductive polymers, improvement of the self-healing features of aluminum oxide films, and refinement of the sealing technology. These upgrades have helped achieve a guaranteed operation for 2,000 hours at 150℃, while maintaining the features of conductive polymer aluminum solid electrolytic capacitors including low ESR and high allowable ripple current. The rated voltage range is 25V to 35V DC, the rated capacitance range is 100µF to 330µF, and the dimensions of the product lineup range from φ8 x 10L to φ10 x 12.7L.

Main Specifications

  • Rated voltage range

: 25V to 35V DC
  • Rated capacitance range

: 100µF to 330µF
  • Category temperature range

: -55℃ to 150℃
  • Product dimensions

: φ8×10L to φ10×12.7L (mm) (3 sizes)
  • Life

: 2,000 hours guaranteed at 150℃
  • Terminal shape

: Chip type
  • Samples

: From April 2019
  • Mass production

: From April 2019
[Planned production volume: 1 million/month]
  • Production plant

: NICHICON (OHNO) CORPORATION,
SITE II Factory
4-24-15 Tsuchifugo, Ono, Fukui Prefecture
(ISO 9001, IATF 16949, and ISO 14001 certified)

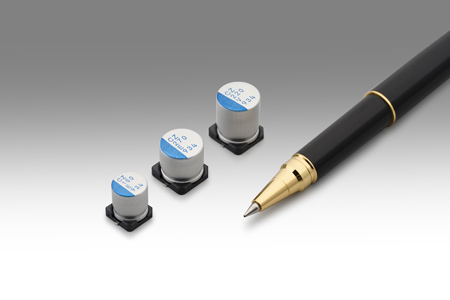

PCZ Series of 150℃ Chip-Type Conductive Polymer
Aluminum Solid Electrolytic Capacitors
