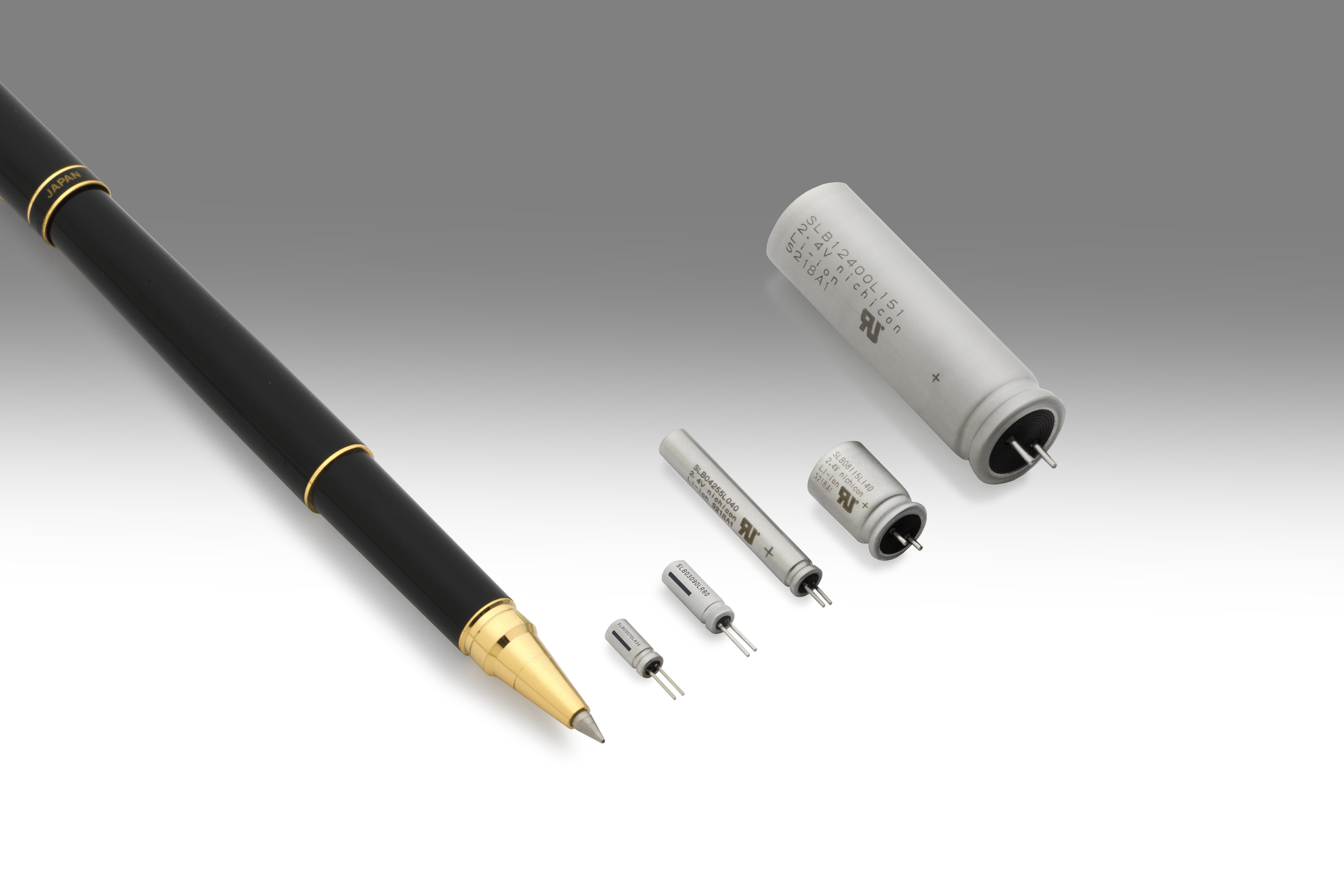

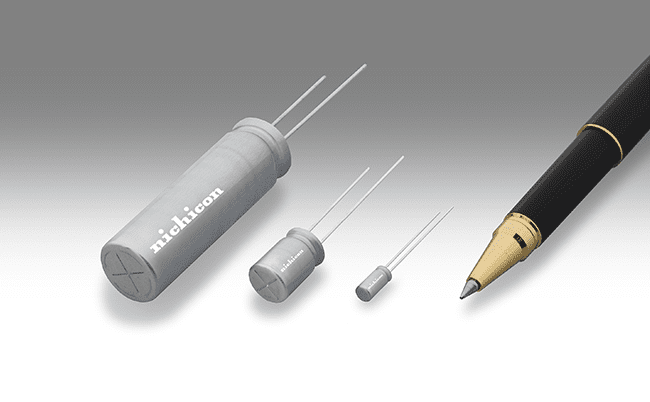

ProductsLINEUP

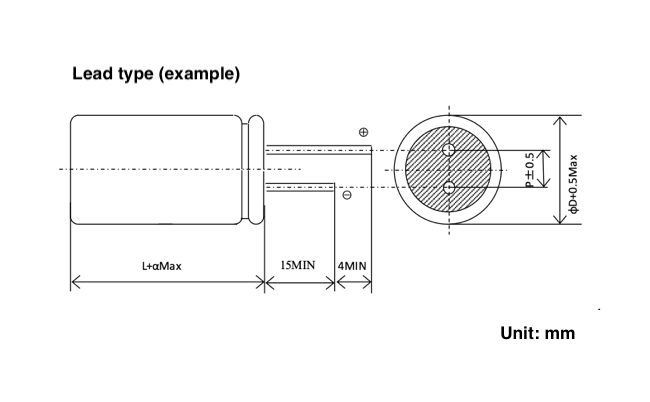

DIMENSIONAL
DRAWING

φD×L φ3×7L φ3.3×9L φ4×25.5L φ8×11.5L φ12.5×40L
P 1.0 1.0 1.5 3.5 5.0
φd 0.4 0.4 0.45 0.6 0.8
α 0 0 0 1.0 2.0

CHARACTERISTIC
CHART

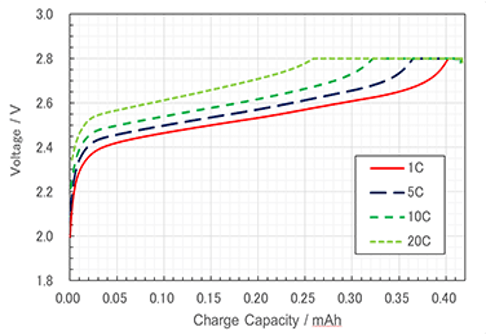

Charging curve
at different C rate

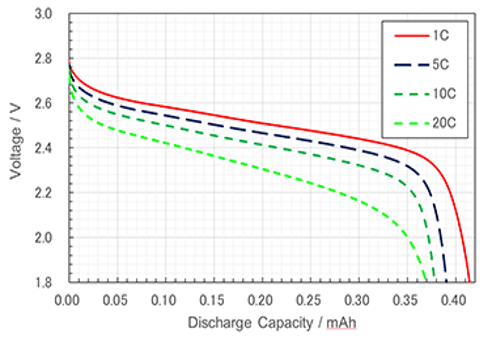

Discharging curve
at different C rate

SPECIFICATIONSpecification

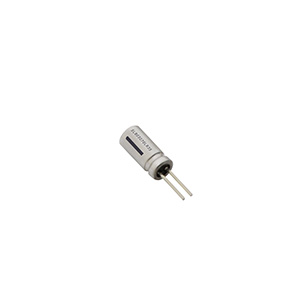

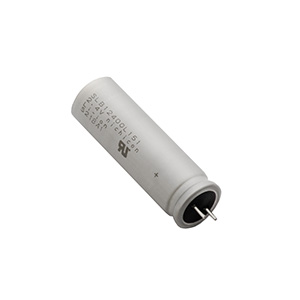

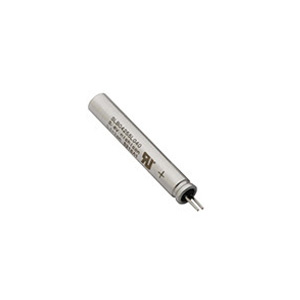

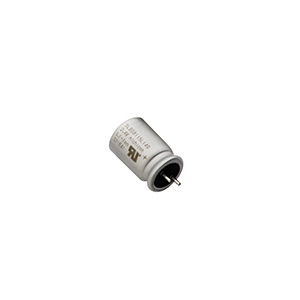

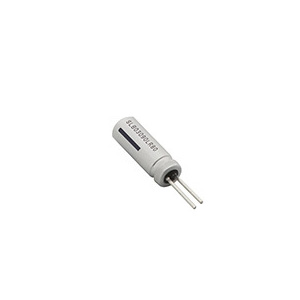

Part number SLB03070LR35 SLB03090LR80 SLB04255L040 SLB08115L140 SLB12400L151
Nominal voltage 2.4V 2.4V 2.4V 2.4V 2.4V
Voltage range 2.8V - 1.8V 2.8V - 1.8V 2.8V - 1.8V 2.8V - 1.8V 2.8V - 1.8V
Max.charge / discharge current 7mA 16mA 80mA 280mA 3000mA
Nominal capacity 0.35mAh 0.8mAh 4mAh 14mAh 150mAh
ESR Max. 12 ohm Max. 8 ohm Max. 0.6 ohm Max. 0.24 ohm Max. 0.06 ohm
Temperature range -30℃ ~ +60℃ -30℃ ~ +60℃ -30℃ ~ +60℃ -30℃ ~ +60℃ -30℃ ~ +60℃
Energy density 16Wh/L 26Wh/L 30Wh/L 58Wh/L 73Wh/L
Weight 0.12g 0.16g 0.75g 1.2g 9.0g
Size Diameter 3.0mm 3.3mm 4.0mm 8.0mm 12.5mm
Height 7.0mm 9.0mm 25.5mm 11.5mm 40.0mm
Data sheet (Preparing) (Preparing)
Scheduled for mass
production in April 2022
Scheduled for mass
production in April 2022

TECHNICAL NOTE
