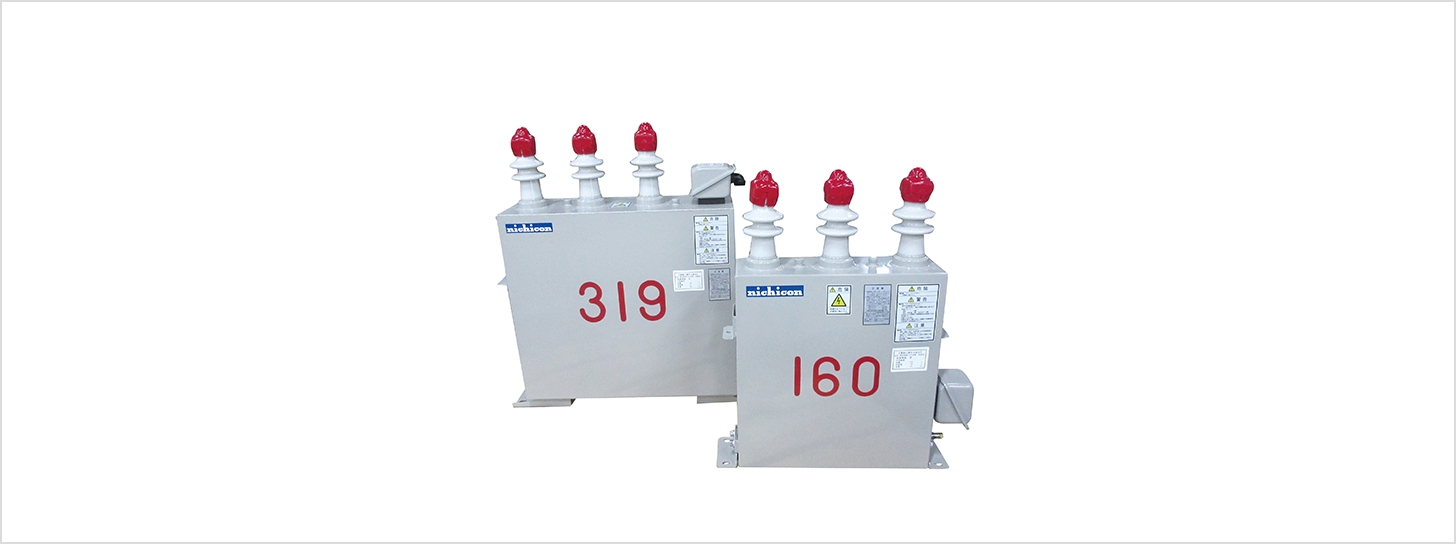

High voltage phase-advancing
capacitors & Series reactor

~Safety & Quality~
Nichicon pursues safety and high quality electricity

NICHICON power capacitor is “SH capacitor”.

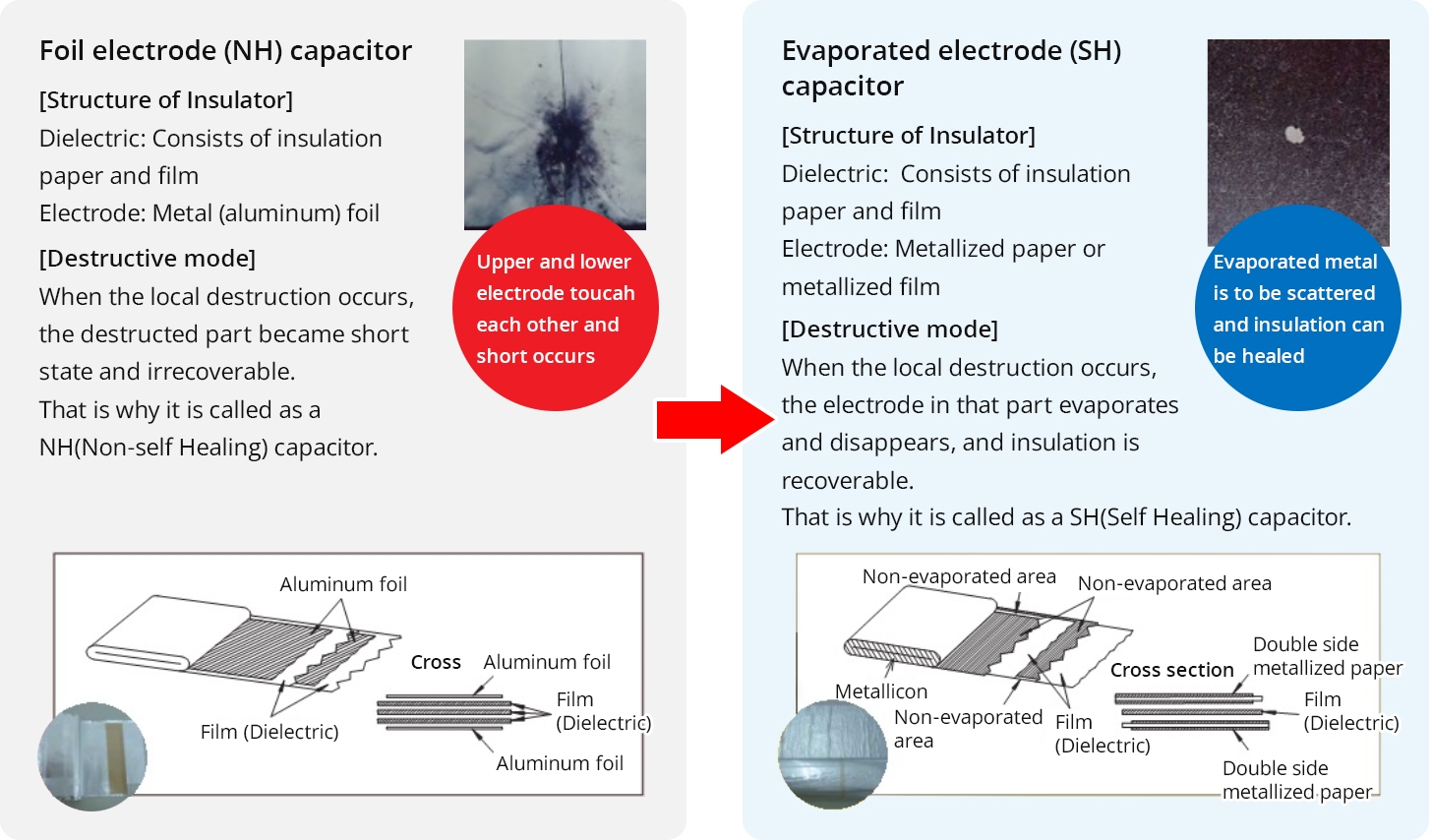

NH capacitor and SH capacitor

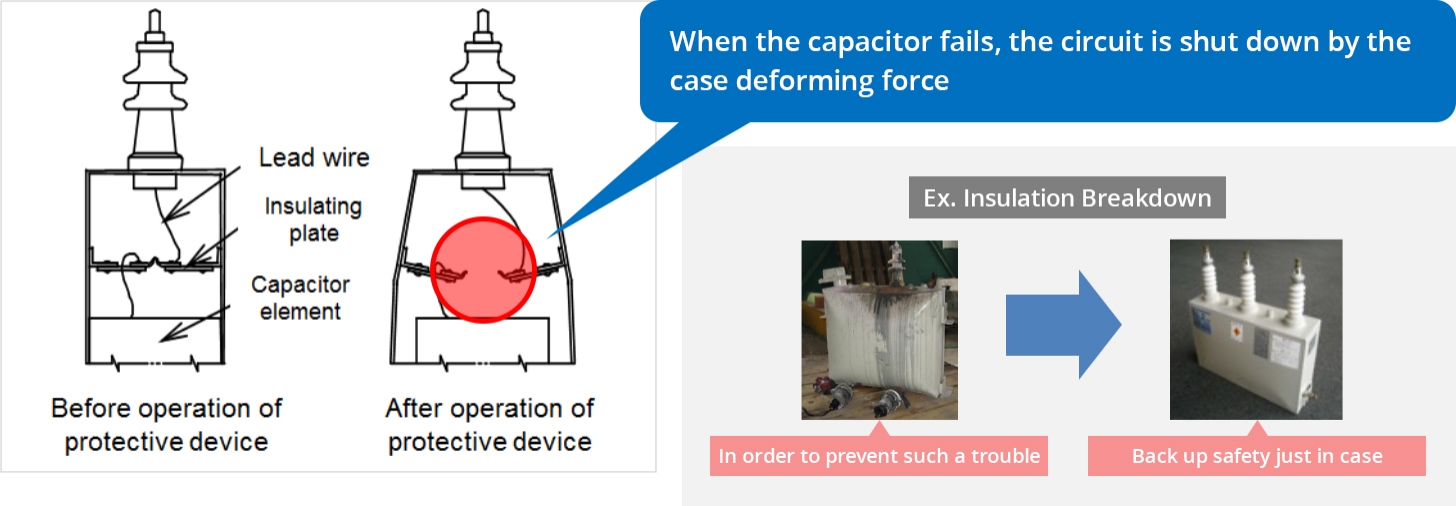

All capacitors incorporate overpressure disconnector.

Description

Series

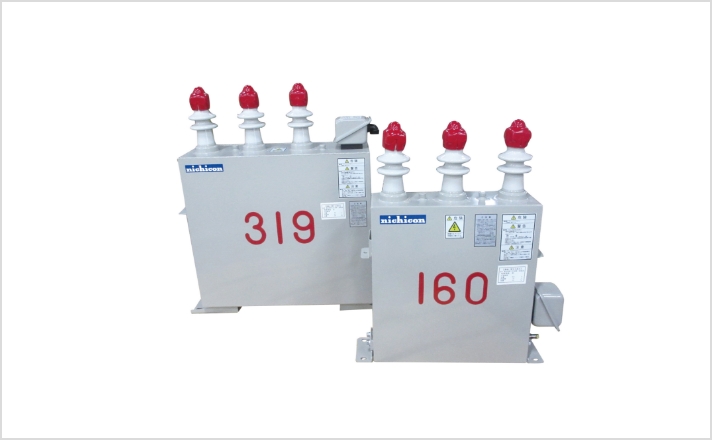

High-voltage Power Capacitors

Specification

Installation	Indoor or outdoor use ，Altitude is not exceeding 1000 m
Ambient temperature	-20 ～ +50 ℃ (Average ambient temperature for a period of 24 hours:Below +45℃) (Average ambient temperature for a period of one year:Below +35℃)
Maximum permissible voltage	110 % of the rated voltage 12 h. in every 24 h 115 % of the rated voltage 30 min. in every 24 h 120 % of the rated voltage 5 min. 130 % of the rated voltage 1 min. (It is assumed that having a value higher than 115% of rated voltage occur not more than 200 times in the capacitor’s life)
Maximum permissible current	130 % of the rated current (If the measured value of the capacitance is within its tolerance and in plus side, the excess portion is approved to be added to the overcurrent)
Capacitance tolerance	From -5 % up to +10 % of the rated value (at 20 ℃) (The ratio of maximum to minimum values of capacitance measured between any two line terminals is not exceed 1.08)
Loss factor	0.05 % or less (at 20 ℃, Rated Voltage)
Discharge Characteristics	Built-in discharge resistor must be able to reduce the residual voltage of the capacitor below 50 volts within a period of 5 minutes.
Color of outside surface	Munsell 5Y7/1
Applied standard	JIS C 4902-1(2010)

Frequency (Hz)	Circuit Voltage (VAC)	Rated Voltage (VAC)	Equipment capacitance (kvar)	Rated capacitance	Code number	Dimensions (mm)			Mass (kg)
Frequency (Hz)	Circuit Voltage (VAC)	Rated Voltage (VAC)	Equipment capacitance (kvar)	kvar	Code number	W	D	H	Mass (kg)
50	6600	7020	25	10.6	AF702120KCC1N	520	105	375	14
			50	53.2	AF702530KAC1N	520	105	395	15
			100	106	AF702101KAC1N	520	105	525	23
			300	319	AF702311KAC1N	620	195	690	71
			500	532	AF702531KAC1N	720	175	1020	130

Other Voltage, Capacitances, Frequency（60Hz）, Reactance （L=13%） are also available.

Series reactor for High-voltage power capacitor

Specification

Installation	Indoor use ，Altitude is not exceeding 1000 m
Ambient temperature	-20 ～ +50 ℃ (Average ambient temperature for a period of 24 hours:Below +45℃) (Average ambient temperature for a period of one year:Below +35℃)
Capacitance tolerance	From -5 % up to +10 % of the rated value (at 20 ℃)
Maximum permissible current	130 % of the rated current the 5th harmonic current not exceeding 55% of the fundamental current (class of permissible current Ⅱ）
Reactance	more than 95% of the rated reactance at 170% rated current
Temperature rise	less than 85K at 155% rated current, rated frequency
Applied standard	JIS C 4902-2(2010)

Frequency (Hz)	Circuit Voltage (V)	Rated Voltage (V)	Equipment capacitance (kvar)	Rated capacitance	Code number	Dimensions (mm)			Mass (kg)
Frequency (Hz)	Circuit Voltage (V)	Rated Voltage (V)	Equipment capacitance (kvar)	kvar	Code number	W	D	H	Mass (kg)
50	6600	7020	10	0.638	CR702100KDE6N	395	300	330	50
			50	3.19	CR702530KDE6N	420	305	350	56
			100	6.38	CR702101KDE6N	510	340	410	95
			300	19.1	CR702311KDE6N	610	370	560	221
			500	19.1	CR702531KDE6N	720	460	645	319

Other Voltage, Capacitances, Frequency（60Hz）, Reactance （L=13%） are also available.
